Over Current Protection CCC 300mA 100mA RCCB 4 Pole

Name: Over Current Protection CCC 300mA 100mA RCCB 4 Pole
Brand: Fenigal/OEM
Price: 1 USD

Quality Over Current Protection CCC 300mA 100mA RCCB 4 Pole for sale

Brand Name : Fenigal/OEM

Model Number : FGID

Certification : CCC, CE etc.

Place of Origin : China

MOQ : 12pcs / 1doz.

Price : Negotiate

Payment Terms : T/T, Western Union

Supply Ability : 200,000 pcs/month

Delivery Time : 2~15days

Packaging Details : standard in carton box

Model : FGID

Pole(s) : 2,4

Volt : 220~240VAC, 380~400VAC

Hz : 50~60Hz

Phase : 1/3

Standard : EN/IEC61008

Rated conditinal short circuit capacity : 6000A

Earth leakage current : 30mA, 100mA, 300mA

Case material : Nylon 66 recylable

Wiring : terminal block, busbar duct etc. IP20B

Electric shock protection : Class II

Mechanical life : 10,000

Electrical life : 4,000

Contact Now

RCCB Residual Current Circuit Breaker 63A 30mA 2P 4P IEC61008

FGID series Residual current circuit breaker(without over-current protection) is suitable for the line of A and S 50/60Hz, voltage 240V(2pole)/415V(4pole), rated current up to 63A.When there is human electricity shock or if the leakage current of the line exceeds the prescribed value, it will cut off the power rapidly to protect human safety and prevent the accident due to the current leakage.It can be used as infrequent changeover of the line in normal situation.It is applicable to industrial site, commercial site, tall building and civil house.

It complies with standard of IEC/EN61008.1 and GB16916.1.Each phase of conductor at the circuit breaker passes through the zero-sequence current transformer, and the secondary side of coil connects with the electromagnetic tripper.Under normal condition, the vector sum of each phase of current passing through zerosequence current transformer is zero.The flux of the zero-sequence current transformer is zero.And the secondary output voltage is zero and the circuit breaker doesn't zero, and the zero-sequence current transformer would produce the magnetic flux, and the secondary side of coil would output the voltage.Once the leak current increases to drive the output voltage at the secondary side to grow to certain level, the electromagnetic release would activate to drive the operation mechanism to act to break the contact that connects the power, finally to realize the leak protection.

Model NO.

FGID

Certification

CE, CB

Dimension

Customized

Color

Customized

Standards

IEC

Brand

Fenigal/OEM

300mA rccb circuit breaker

100mA rccb switch

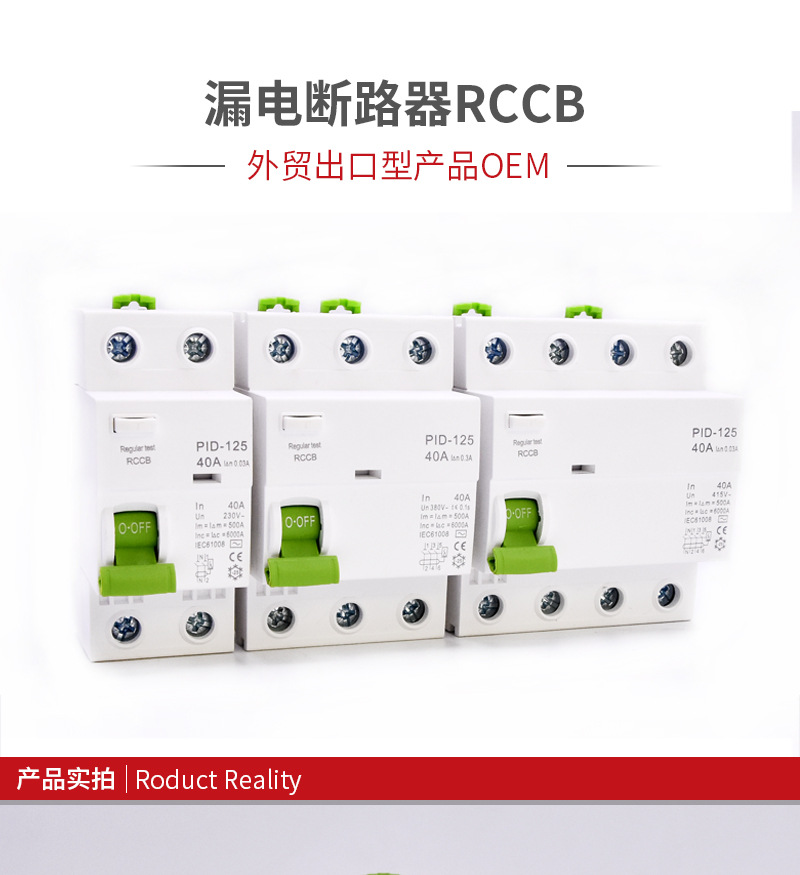

Over Current Protection CCC 300mA 100mA RCCB 4 Pole Images

Inquiry Cart 0

Send your message to this supplier


*From:	Your email address is incorrect!
*To:	Wuxi Fenigal Science & Technology Co., Ltd.
*Subject:	Subject is empty!
*Message:	For the best results, we recommend including the following details: -Self introduction -Required specifications -Inquire about price/MOQ Characters Remaining: (0/3000) Please enter 20 to 3000 characters to contact this supplier!

Frame	63A
Rated working voltage	240/415V
Rated frequency	50/60Hz
Rated working current	16,20,25,32,40,50,63A
Rated residual operating current	0.03,0.1,0.3A
Rated residual un-operating current	0.015,0.05,0.15A
Sensibility	A Type,AC Type,S Type
Maximum operating time	IΔn t≤0.1s , 5IΔn t≤0.04
Rated making and breaking capacity	In≤50A 500A,In=63A 630A
Limiting value of un-operating current	6In
Rated limiting short-circuit current	6000A
Pole number	2,4P
Mechanical life	10000
Electric life	4000

Catalogue Number	Rated Current (A)	Number of Pole	Rating	Type	Un(V)	IΔc(A)
FGID-63/2P	16,20,25,32, 40,50,63	2P	10,30, 100,300	AC,A	230VAC	6000
FGID-63/4P	16,20,25,32, 40,50,63	4P	10,30, 100,300	AC,A	400VAC	6000
