5 Color Industrial Electrical Controls Indicator Lamp Buzzer 12v 24v 110v 230v LED Line

Name: 5 Color Industrial Electrical Controls Indicator Lamp Buzzer 12v 24v 110v 230v LED Line
Brand: Chint
Price: 1 USD

Quality 5 Color Industrial Electrical Controls Indicator Lamp Buzzer 12v 24v 110v 230v LED Line for sale

Brand Name : Chint

Model Number : ND16

Certification : CE,CCC etc.

Place of Origin : China

MOQ : 12pcs

Price : USD1~USD2/unit

Payment Terms : T/T, Western Union

Supply Ability : 50,000pcs/month

Delivery Time : 5-8 working days or bulk order negotiate

Packaging Details : Standard export carton

Product Name : ND16 Indicator Lamp

Type : Pilot Device

Control Volt : 380VAC, 220VDC

Mechanical life : 10 Million cycles

Electrical life : 300 Thousand cycles

Environment temperature : -15~60 degree Celsius

Lamp : LED

Contact Now

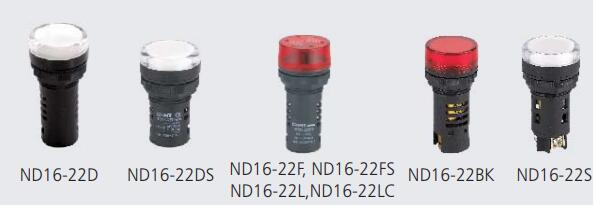

CHINT ND16 Series Indicator Lamp Buzzer Red,Green,Blue,Yellow,White 12v,24v,110v,230v LED Line AC380VDC220V

characteristic

Compliance with IEC, CCC certification standards
IP65, or IP66 (with protective cover)
Operating temperature -25°C to +70°C
Screw fastening method
Complete product range
Modular product design for custom installation and use
Warranty period: 18 months

Advantage

Simple and refined

Rugged and durable metal series for easy operation and quick and easy installation

application

Industry: Machine Manufacturing, Control System Panel Manufacturing, etc.
Downstream applications: transmission and distribution panels, utilities, buildings, airports, etc.

Working & mounting conditions
3. Technical data
2.1 Ambient temperature is -5℃~+40℃, the average temperature during 24 hours couldn't exceed +35℃.
2.2 Altitude: ≤2000m.
2.3 Atmosphere condition: Relative humidity of the atmosphere couldn't exceed 50% when the highest temperature is +40℃; much higher relative humidity is allowable under the condition of lower temperature, for example, when the temperature reaches +20℃, the relative humidity is up to 90%. As for dews, which contingently appear due to change of temperature, special steps should be taken.
2.4 Pollution degree: 3
2.5 Overvoltage category: Ⅲ

5 Color Industrial Electrical Controls Indicator Lamp Buzzer 12v 24v 110v 230v LED Line

**main information**
Product Series	ND16
product type	Complete set of indicators
Product short name	ND16 Indicator Lamp
Border material	plastic
Mounting diameter	22 mm
Separate sales quantity per piece	1
Operating head or lens color	red
Light source	LED bulb
Lamp holder	Built-in BA 9s base
Rated power supply voltage [Us]	24 V AC/DC 50/60 Hz

**Additional information**
device installation	Mounting hole - Diameter: 22.5 mm
signal type	Constantly bright
Power supply voltage range	0.8...1.1 V AC/DC
model	XCE

**surroundings**
Protection process	TC
Storage ambient temperature	-40...70 °C
Operating temperature	-25...55 °C
Overvoltage type	Class I in accordance with IEC 60356
IP protection level	IP66 in accordance with IEC 60529
IK protection level	IK05 complies with IEC 50102

**main information**
Product Series	ND16
product type	Complete set of indicators
Product short name	XB2B
Border material	plastic
Mounting diameter	22 mm
Separate sales quantity per piece	1
Operating head or lens color	green
Light source	LED bulb
Lamp holder	Built-in BA 9s base
Rated power supply voltage [Us]	24 V AC/DC 50/60 Hz

**Additional information**
device installation	Mounting hole - Diameter: 22.5 mm
signal type	Constantly bright
Power supply voltage range	0.8...1.1 V AC/DC
model	XCE

**surroundings**
Protection process	TC
Storage ambient temperature	-40...70 °C
Operating temperature	-25...55 °C
Overvoltage type	Class I in accordance with IEC 60356
IP protection level	IP66 in accordance with IEC 60529
IK protection level	IK05 complies with IEC 50102

5 Color Industrial Electrical Controls Indicator Lamp Buzzer 12v 24v 110v 230v LED Line
